Dummy Pair
Inside Thumbturn, Patio Function
Single Cylinder, Keyed
Multipoint Passage
Inside Thumbturn, Fixed Handles

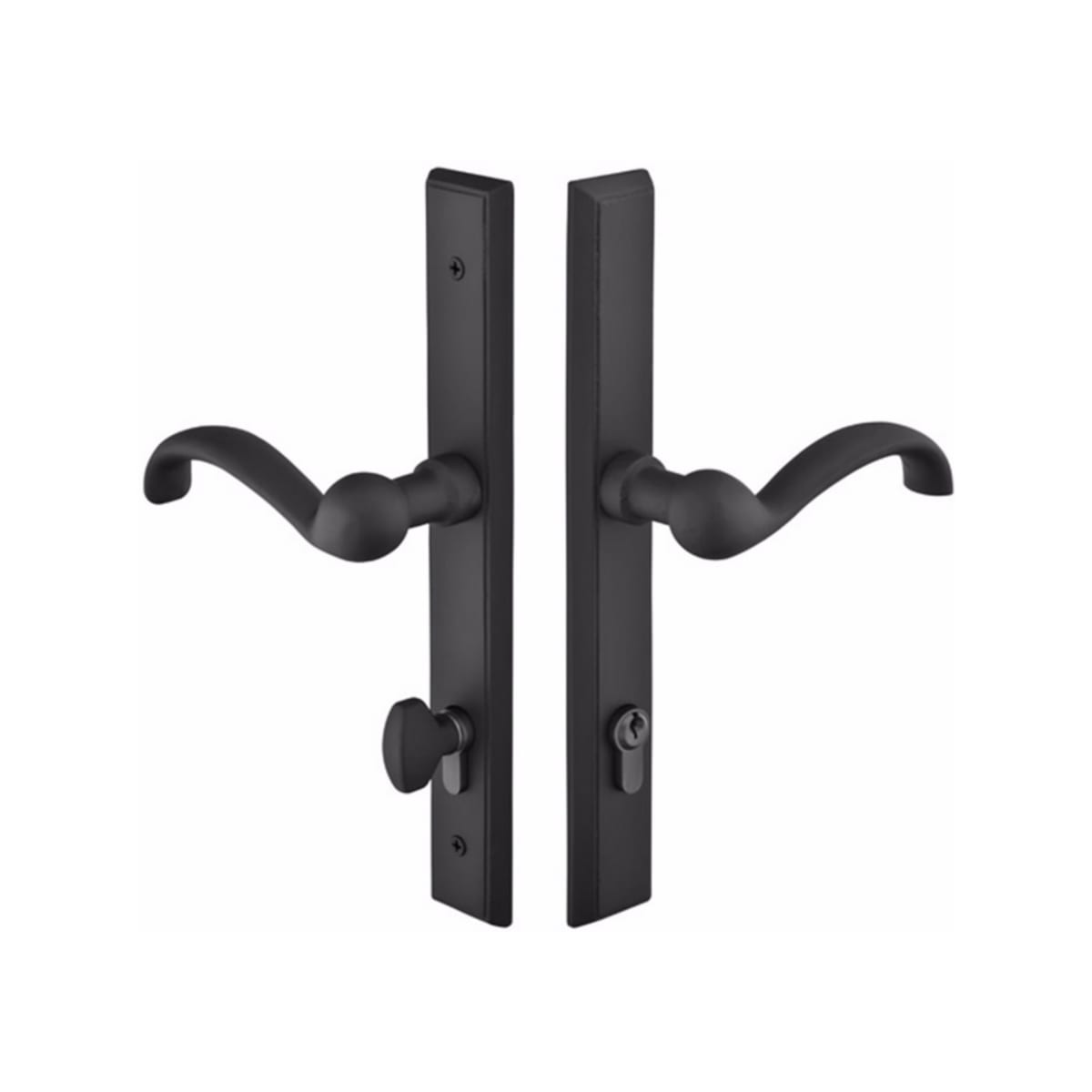

Shown: Emtek Rectangular Style, 1-1/2" x 11" Keyed, 3-5/8" C-to-C Euro with Teton Lever in Flat Black Finish
Rectangular Sandcast Multi Point Lock Trim
Finishes (3)
Levers (8)
Door Configurations (8)
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
- Multi Point Mortise Lock Box not included. Trims Only
- For pricing information, contact any EMTEK® dealer
Available Functions
- Dummy Pair
- Inside Thumbturn, Patio Function
- Single Cylinder, Keyed
- Multipoint Passage
- Inside Thumbturn, Fixed Handles
Specifications
Multi Point Lock Trim for Swinging Doors
Choose trim sets from door & lock configurations, available in both keyed and non-keyed functions.
To determine your Multi Point Lock configuration:
- Identify the manufacturer of your door and multi-point lock
- Measure the center-to-center hole spacing between the lever and the cylinder
- Check the lever position: is it above or below the cylinder?
- Identify the type of cylinder used in the door: is it American or Euro Profile Cylinder?
Please note: some retrofitting may be necessary.
