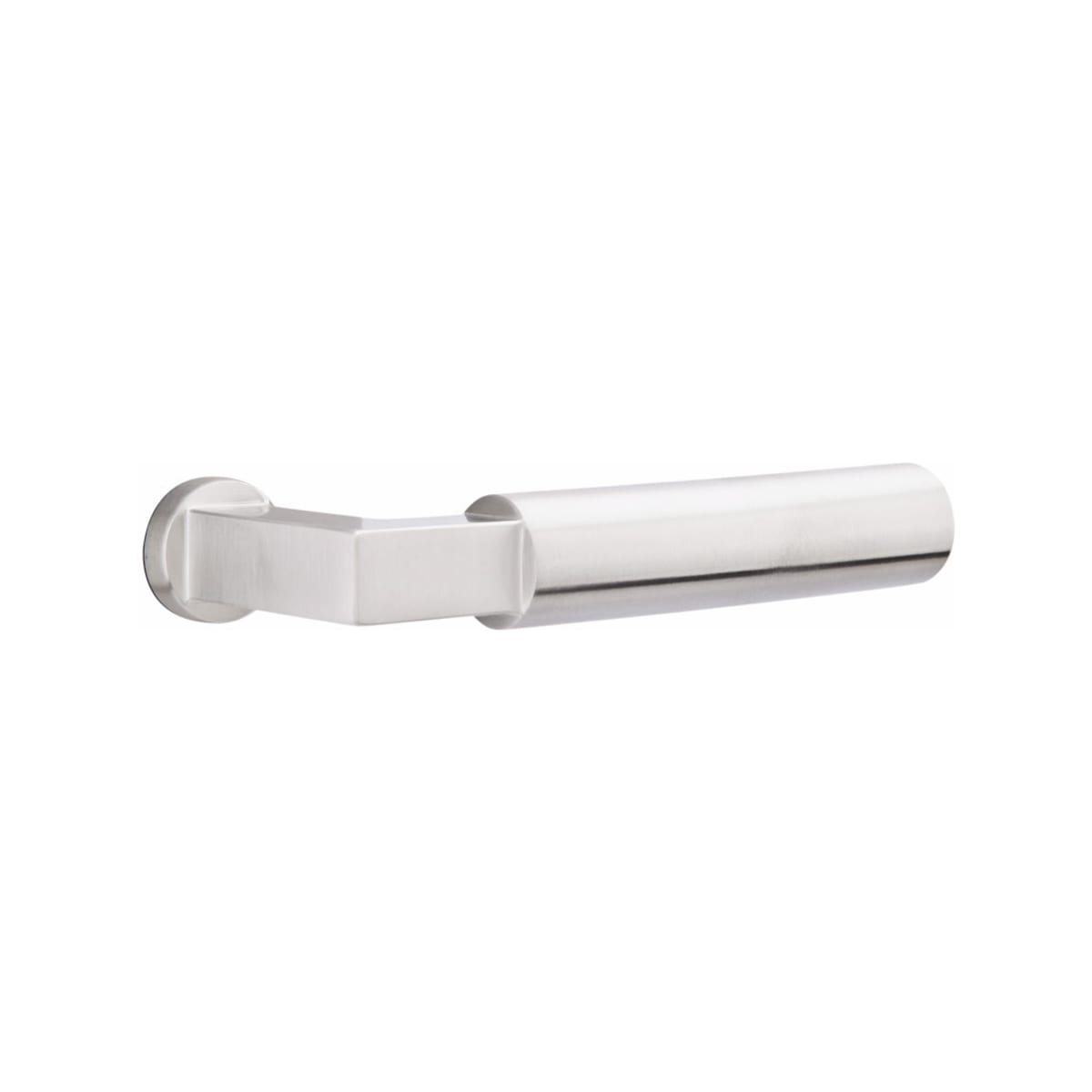

Shown: Emtek Hercules Lever HS SS
- Can be ordered with any Stainless Steel rosette
- Sold as complete set. Includes Latch and Strike Plate
- For pricing information, contact any Emtek® dealer
Available Functions
- Privacy
- Passage
- Dummy
Available Upgrades
- 28 Degree Latch
- Concealed Fastener (includes 28 degree latch)
- Fits any door between 1-3/8" to 2-1/4" thick with a 2-1/8" bore standard door prep
- Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
Specifications
STAINLESS STEEL
Our Stainless Steel finish is a highly corrosion-resistant grade of steel and is available in several product categories including bathroom hardware, passage and privacy levers and knobs, deadbolts, 1 and 2 point locks, hinges, as well as tubular and mortise entry and grip sets.
UPGRADE WITH CONCEALED FASTENER 2.0
Our Concealed Fastener Mechanism provides a clean look with no visible screws on the interior rosette.
All CF Mechanism lever upgrades also include a 28 degree latch (vs the standard 45 degree latch), which requires less rotation to disengage the latch and open a door when compared to standard latches.
RIGHT OR LEFT HANDING?
To determine the handing of your door:
- Stand at the exterior side of the door in question, facing towards the inside.
- Take note of which side of the door the hinges are on.
- If the hinges are on the left side, then the door and the hardware should be left handed.
- If the hinges are on the right side, then the door and the hardware should be right handed.
Learn more about handing here:
