Privacy
Passage
Dummy
Design your products exactly how you want them with our NEW MyEMTEK tool, and save the details to your Favorites.
Create Now

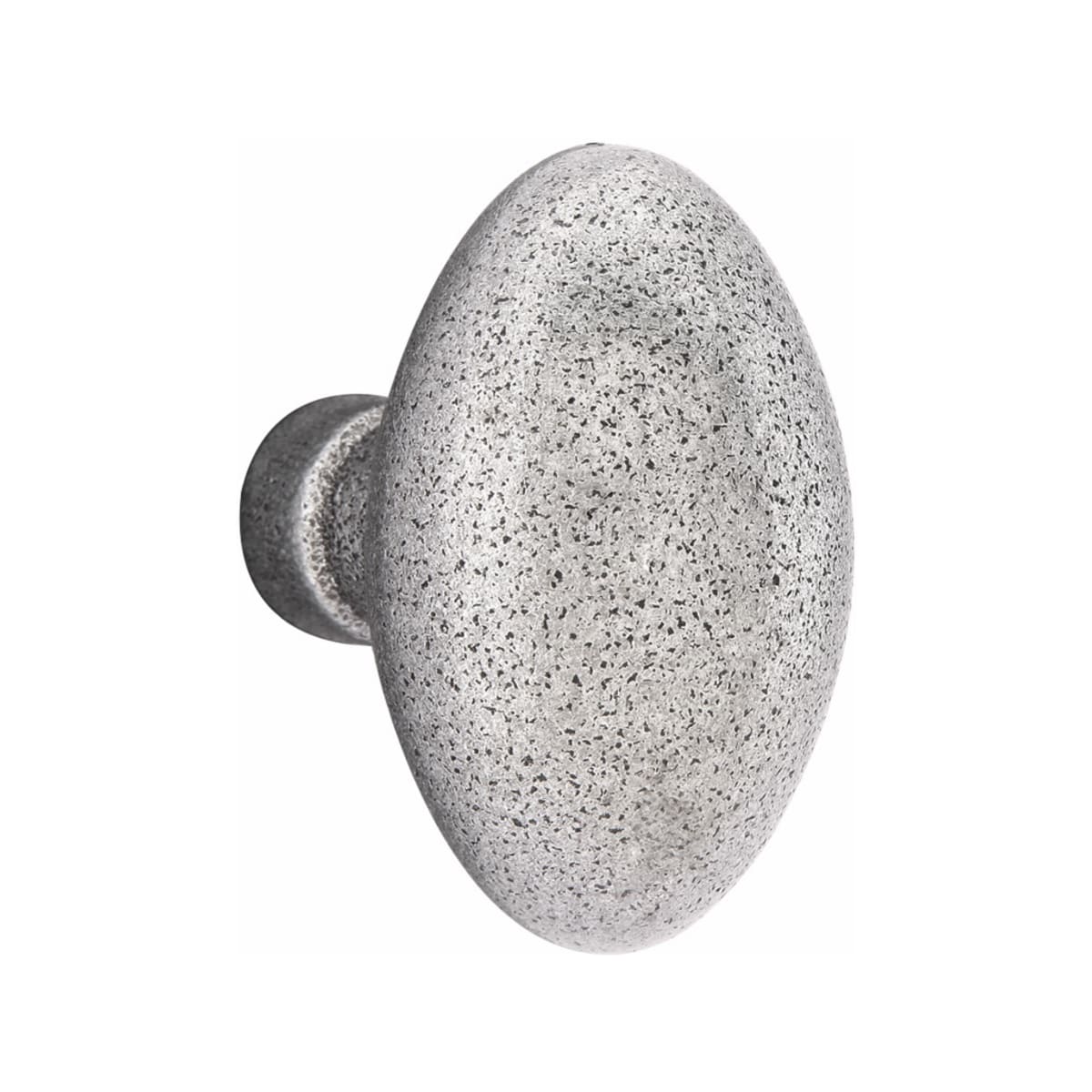

Shown: Emtek Savannah SV SWS
Savannah Knob
Finishes (2)
Rose (3)
Customize this product with your perfect style and finish combinations for both sides of your door.
- Can be ordered with any Wrought Steel rosette
- Sold as complete set. Includes Latch and Strike Plate
- 28 Degree Latch is available for additional charge
- For pricing information, contact any EMTEK® dealer
Available Functions
- Privacy
- Passage
- Dummy
<ul><li>Fits any door between 1-1/4” to 2" thick with a 2-1/8" bore standard door prep</li>
- Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
- Door thickness for Concealed Fastener (CF) is 1-3/8" to 1-3/4". Specify if thicker
</ul>
Specifications
WROUGHT STEEL
Emtek's Wrought Steel series consists of entrance handlesets, cabinet hardware, door lever and door knob options made from steel that is worked to resemble the rustic, hand-craftsmanship of wrought iron. Characterized by ornate details and a sturdy, iron texture, these products are as much at home on a Spanish-style home or a rustic, traditional cabin.
