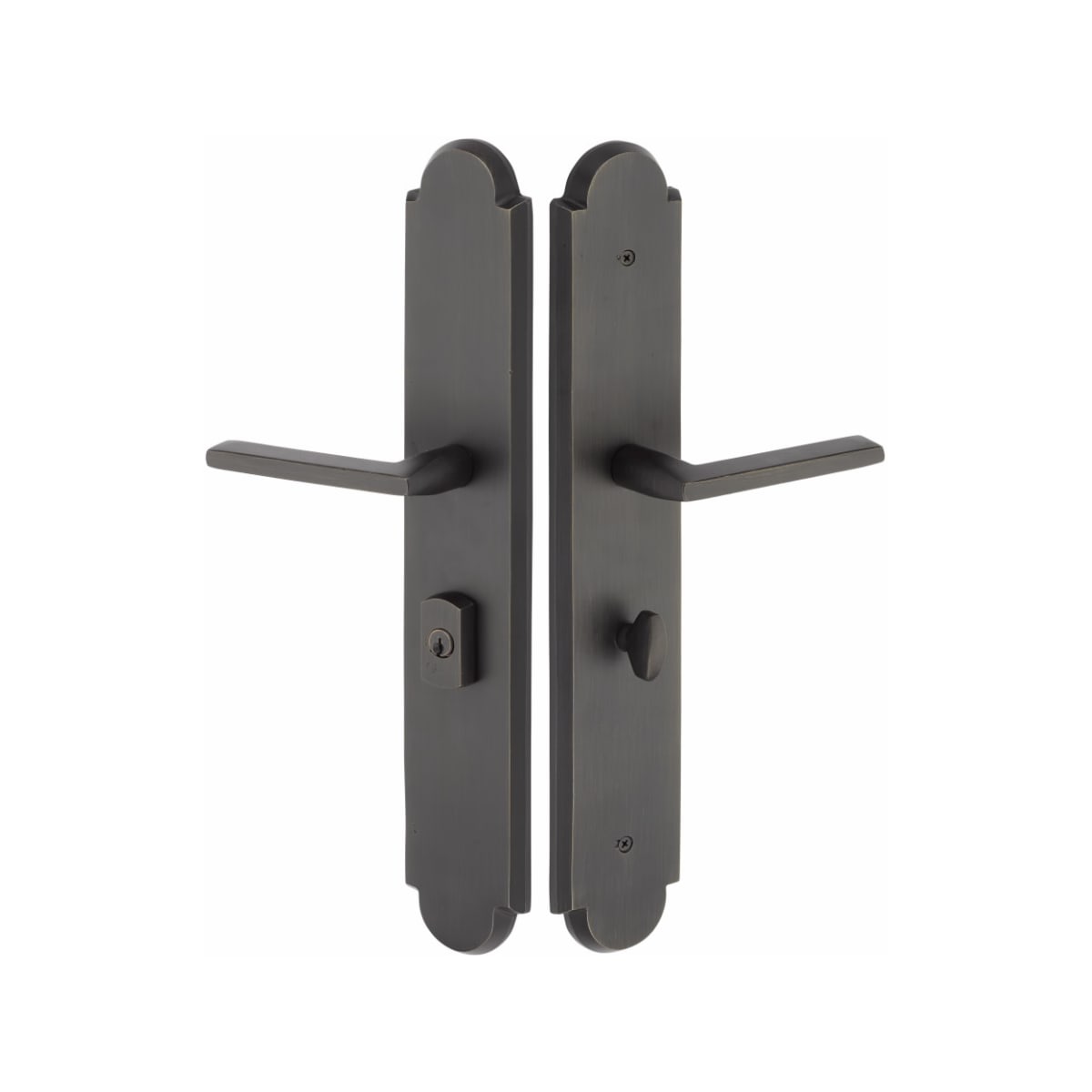

Shown: Emtek Arched American Below Large MP Lariat MB
Large Arched Sandcast Multi Point Lock Trim
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
- Multi Point Mortise Lock Box not included. Trims Only
- For pricing information, contact any EMTEK® dealer
- Includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Available Functions
- Dummy Pair
- Inside Thumbturn, Patio Function
- Single Cylinder
- Passage
- Inside Thumbturn, Fixed Handles
- 2-3/8” (60mm) minimum backset required.
Specifications
New! Large Multi Point Entry Set Trim
As the use of Multi Point locks on front doors continue to grow in popularity, very few lock trim options are available that fit the larger proportions and scale of entry doors. Introducing the Emtek Large Multi Point Entry Set Trim, designed to match traditional Entry Set Lock dimensions.
Trim plates are available in 3 distinct designs and can be combined with our wide variety of lever and finish options for a custom look.
Our Multi Point lock trims are compatible with American or European cylinder hubs and manufacturer lock mechanisms with a 2-3/8” (60mm) minimum backset.
Multi Point Lock Trim for Swinging Doors
Choose trim sets from door & lock configurations, available in both keyed and non-keyed functions.
To determine your Multi Point Lock configuration:
- Identify the manufacturer of your door and multi-point lock
- Measure the center-to-center hole spacing between the lever and the cylinder
- Check the lever position: is it above or below the cylinder?
- Identify the type of cylinder used in the door: is it American or Euro Profile Cylinder?
Please note: some retrofitting may be necessary.
