F13 Mortise
Dummy
F20 Mortise

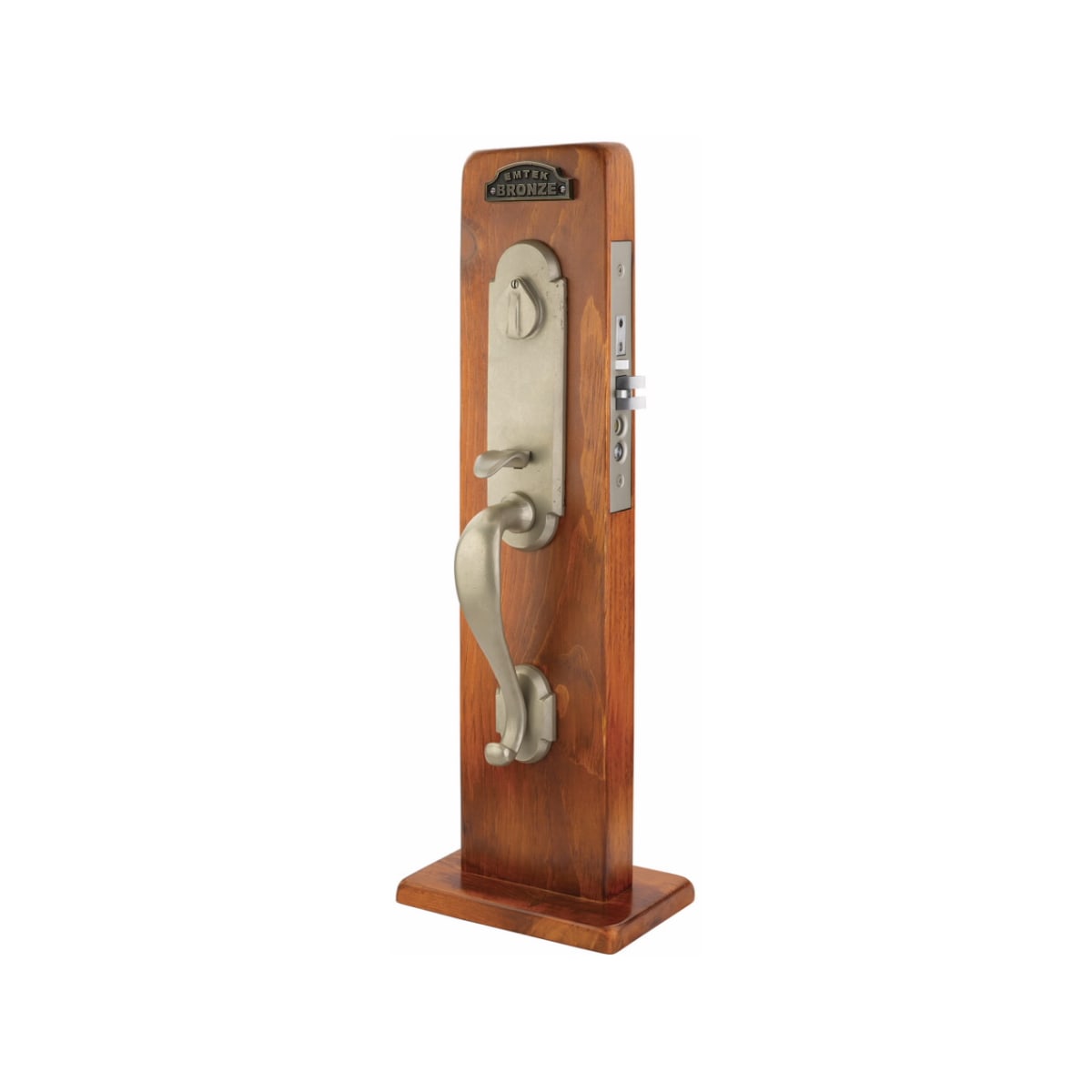

Shown: Emtek Cheyenne Monolithic Mortise Entry Set in TWB Finish Outside View
- Can be ordered with any Sandcast Bronze knob or lever for the inside trim
- Sold as complete set. Includes latch and strike plate
- For pricing information, contact any EMTEK® dealer
Available Functions
- F13 Mortise
- Dummy
- F20 Mortise
- 2-1/2" or 2-3/4" backsets
- Standard mortise door prep ANSI A115.1
- UL Listed mortise with ANSI F20 or F13 function
- Schlage C keyway
- Handing required for all mortise locks
Specifications
- Emtek Dummy Mortise Entry Set Models
- Emtek Active & Dummy UL Mortise Entry Set Models
- Emtek Dummy Mortise Lock Installation Instructions - Trilingual
- Emtek UL Mortise Lock Installation Guide - F13 Function
- Emtek UL Mortise Lock Installation Guide - F20 Function
- Emtek Active UL Mortise Lock Door Prep - Left Hand
- Emtek Active UL Mortise Lock Door Prep - Right Hand
- Emtek Dummy Mortise Lock Door Prep - Left Hand
- Emtek Dummy Mortise Lock Door Prep - Right Hand
MORTISE ENTRY SETS
Emtek’s heavy duty mortise lock boxes include:
- UL Listed mortise door prep ANSI A115.1
- 180 minute fire rating
- Deadlocking latch bolt
- Forged deadbolts with anti-saw inserts
- Anti-pick security latches
- Anti-friction triggers
- Stop and release buttons in the F20 function option
- Function (F13 or F20), backset length and handing are required on all mortise lock orders
SANDCAST BRONZE
Our collection of Sandcast Bronze knobs, levers and cabinet hardware options are made of a metal alloy that consists mostly of copper and is made to patina over time, creating a "living" finish that showcases exposure and wear patterns for a unique appearance.
The Bronze Age, a historic period between 3300 BC and 1200 BC, was significant for its use of this material.
